Tutorial 12 — Explicit FoldForests and torsions#
Build coupled and per-residue-root FoldForests, perturb an inter-chain jump, and assign named backbone torsions. Complete minimization and kinematics first.
A FoldForest controls which atoms move together. It does not add chemical bonds, repair geometry, or score conformations.
Setup#
In Colab, select T4 GPU, then Run all. For local execution, follow the installation guide. Setup installs TMol and downloads the fixtures on first use.
The notebook builds short idealized sequences, so it needs no downloaded structures. The examples are intentionally small enough for CPU documentation execution while using the same public kinematics operations on CUDA.
[1]:
try:
import google.colab # noqa: F401
except ImportError:
IN_COLAB = False
else:
IN_COLAB = True
if IN_COLAB:
from urllib.request import urlopen
exec(
urlopen(
"https://raw.githubusercontent.com/uw-ipd/tmol/"
"master/docs/tutorial/colab_setup.py"
).read(),
globals(),
)
setup_colab([])
[2]:
import attrs
import matplotlib.pyplot as plt
import networkx as nx
import numpy as np
import pandas as pd
import torch
from IPython.display import display
import tmol
from tmol.kinematics import (
EdgeType,
FoldForest,
JumpDOFTypes,
NodeType,
PoseStackKinematicsModule,
inverseKin,
)
SEED = 20260910
np.random.seed(SEED)
torch.manual_seed(SEED)
device = (
torch.device("cuda", torch.cuda.current_device())
if torch.cuda.is_available()
else torch.device("cpu")
)
def show_table(frame):
try:
from itables import show
except ImportError:
return display(frame)
return show(frame)
print(f"TMol {tmol.__version__}; PyTorch {torch.__version__}; device={device}")
TMol 0.1.62; PyTorch 2.14.1+cpu; device=cpu
Compare automatic, coupled, and dandelion topologies#
The sequence grammar uses : for a chain break. reasonable_fold_forest() roots the two chains independently. The custom coupled forest instead attaches chain B to chain A with ordinary jump 0, making six rigid-body degrees of freedom control their relative placement. The dandelion forest independently attaches every block to TMol’s virtual root.
Each stored edge is (edge type, start block, end block, jump index). Root jumps always start at -1; root-jump and polymer edges use jump index -1; ordinary jumps use contiguous indices beginning at zero. Unused padded rows also contain -1.
[3]:
two_chain_pose = tmol.extended_pose_stack_from_sequences(
"ACDE:FGHI", device=device
)
n_blocks = two_chain_pose.max_n_blocks
chain_b_start = 4
automatic_forest = FoldForest.reasonable_fold_forest(two_chain_pose)
coupled_edges = np.full((1, 4, 4), -1, dtype=np.int64)
coupled_edges[0, 0] = [EdgeType.root_jump, -1, 0, -1]
coupled_edges[0, 1] = [EdgeType.polymer, 0, chain_b_start - 1, -1]
coupled_edges[0, 2] = [EdgeType.jump, 0, chain_b_start, 0]
coupled_edges[0, 3] = [EdgeType.polymer, chain_b_start, n_blocks - 1, -1]
coupled_forest = FoldForest.from_edges(coupled_edges)
dandelion_edges = np.full((1, n_blocks, 4), -1, dtype=np.int64)
dandelion_edges[0, :, 0] = EdgeType.root_jump
dandelion_edges[0, :, 1] = -1
dandelion_edges[0, :, 2] = np.arange(n_blocks)
dandelion_edges[0, :, 3] = -1
dandelion_forest = FoldForest.from_edges(dandelion_edges)
def edge_rows(label, forest):
rows = []
for edge_index in range(int(forest.n_edges[0])):
edge_type, start, end, jump = [
int(value) for value in forest.edges[0, edge_index]
]
rows.append(
{
"forest": label,
"edge": edge_index,
"type": EdgeType(edge_type).name,
"start": start,
"end": end,
"jump_index": jump,
}
)
return rows
edge_frame = pd.DataFrame(
edge_rows("automatic", automatic_forest)
+ edge_rows("coupled", coupled_forest)
+ edge_rows("dandelion", dandelion_forest)
)
show_table(edge_frame)
Environment variable CCD_MIRROR_PATH not set. Will not be able to use function requiring this variable. To set it you may:
(1) add the line 'export VAR_NAME=path/to/variable' to your .bashrc or .zshrc file
(2) set it in your current shell with 'export VAR_NAME=path/to/variable'
(3) write it to a .env file in the root of the atomworks.io repository
Environment variable PDB_MIRROR_PATH not set. Will not be able to use function requiring this variable. To set it you may:
(1) add the line 'export VAR_NAME=path/to/variable' to your .bashrc or .zshrc file
(2) set it in your current shell with 'export VAR_NAME=path/to/variable'
(3) write it to a .env file in the root of the atomworks.io repository
| Loading ITables v2.9.1 from the internet... (need help?) |
| ⓘforest | edge | type | start | end | jump_index |
|---|---|---|---|---|---|
| automatic | 0 | root_jump | -1 | 0 | -1 |
| automatic | 1 | polymer | 0 | 3 | -1 |
| automatic | 2 | root_jump | -1 | 4 | -1 |
| automatic | 3 | polymer | 4 | 7 | -1 |
| coupled | 0 | root_jump | -1 | 0 | -1 |
| coupled | 1 | polymer | 0 | 3 | -1 |
| coupled | 2 | jump | 0 | 4 | 0 |
| coupled | 3 | polymer | 4 | 7 | -1 |
| dandelion | 0 | root_jump | -1 | 0 | -1 |
| dandelion | 1 | root_jump | -1 | 1 | -1 |
| (6 more rows not shown) | |||||
[4]:
def expanded_graph(forest):
graph = nx.DiGraph()
graph.add_node(-1)
for block in range(n_blocks):
graph.add_node(block)
for edge_index in range(int(forest.n_edges[0])):
edge_type, start, end, _ = [
int(value) for value in forest.edges[0, edge_index]
]
if edge_type == int(EdgeType.polymer):
step = 1 if end >= start else -1
for parent in range(start, end, step):
graph.add_edge(parent, parent + step, kind="polymer")
elif edge_type == int(EdgeType.root_jump):
graph.add_edge(-1, end, kind="root jump")
else:
graph.add_edge(start, end, kind="ordinary jump")
return graph
positions = {-1: (0.5, 1.15)}
positions.update({block: (block % 4, 0.55 - 0.55 * (block // 4)) for block in range(n_blocks)})
forest_map = {
"automatic: independent chains": automatic_forest,
"coupled by ordinary jump": coupled_forest,
"dandelion: one root jump per block": dandelion_forest,
}

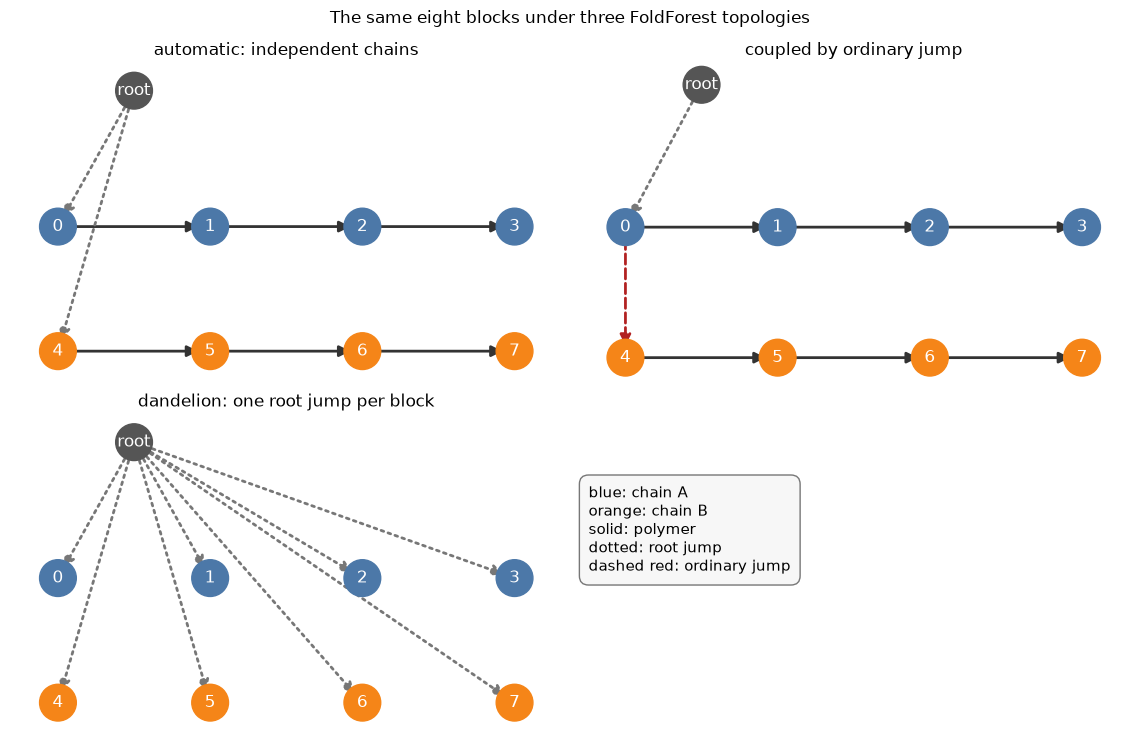

fig, axes_grid = plt.subplots(2, 2, figsize=(11.5, 7.5))
axes = axes_grid.flatten()
for axis, (title, forest) in zip(axes[:3], forest_map.items()):
graph = expanded_graph(forest)
node_colors = [
"#555555" if node == -1 else "#4c78a8" if node < chain_b_start else "#f58518"
for node in graph.nodes
]
nx.draw_networkx_nodes(graph, positions, node_color=node_colors, node_size=700, ax=axis)
nx.draw_networkx_labels(
graph,
positions,
labels={node: "root" if node == -1 else str(node) for node in graph.nodes},
font_color="white",
ax=axis,
)
for kind, style, color in [
("polymer", "solid", "#333333"),
("root jump", "dotted", "#777777"),
("ordinary jump", "dashed", "#b22222"),
]:
selected = [(u, v) for u, v, data in graph.edges(data=True) if data["kind"] == kind]
nx.draw_networkx_edges(
graph,
positions,
edgelist=selected,
style=style,
edge_color=color,
width=2.0,
arrows=True,
arrowsize=16,
ax=axis,
)
axis.set_title(title)
axis.set_axis_off()
axes[3].set_axis_off()
axes[3].text(
0.02,
0.78,
"blue: chain A\norange: chain B\nsolid: polymer\ndotted: root jump\ndashed red: ordinary jump",
transform=axes[3].transAxes,
va="top",
fontsize=11,
bbox={"boxstyle": "round,pad=0.6", "fc": "#f7f7f7", "ec": "#777777"},
)
fig.suptitle("The same eight blocks under three FoldForest topologies")
plt.tight_layout()
plt.show()
The automatic forest has two root jumps; the coupled forest has one root and one ordinary jump from block 0 to 4. The dandelion forest has eight root jumps, preserving each block’s internal geometry. It neither changes chemical connectivity nor idealizes lengths and angles.
Perturb an inter-chain jump#
inverseKin() initializes DOFs from coordinates; PoseStackKinematicsModule maps them back. Translate the ordinary jump by 3 Å along its frame and tilt it by 12°.
Checks require chain A to stay fixed and every block in chain B to move, catching accidental selection of the virtual-root jump.
[5]:
kinematics_module = PoseStackKinematicsModule(two_chain_pose, coupled_forest)
kmd = kinematics_module.kmd
flat_atom_ids = kmd.forest.id[1:].to(torch.int64)
kincoords = torch.zeros(
(kmd.forest.id.shape[0], 3), dtype=torch.float64, device=device
)
kincoords[1:] = two_chain_pose.coords.reshape(-1, 3)[flat_atom_ids].double()
dofs = inverseKin(kmd.forest, kincoords)
# Resolve ordinary jump 0 through its destination atom, not node order.
jump_block, jump_atom = kmd.pose_stack_atom_for_jump[0, 0].tolist()
jump_coord_id = int(two_chain_pose.block_coord_offset64[0, jump_block]) + jump_atom
inter_chain_jump_node = int(
torch.nonzero(kmd.forest.id == jump_coord_id, as_tuple=False).item()
)
assert kmd.forest.doftype[inter_chain_jump_node] == NodeType.jump
moved_dofs = dofs.raw.clone()
moved_dofs[inter_chain_jump_node, JumpDOFTypes.RBx] += 3.0
moved_dofs[inter_chain_jump_node, JumpDOFTypes.RBdel_alpha] += np.deg2rad(12.0)
moved_kincoords = kinematics_module(moved_dofs)
moved_flat = two_chain_pose.coords.reshape(-1, 3).clone()
moved_flat[flat_atom_ids] = moved_kincoords[1:].to(moved_flat.dtype)
jump_moved_pose = attrs.evolve(
two_chain_pose, coords=moved_flat.view_as(two_chain_pose.coords)
)
def mean_block_displacement(reference, mobile, block):
start = int(reference.block_coord_offset64[0, block])
block_type_index = int(reference.block_type_ind64[0, block])
n_atoms = int(reference.packed_block_types.n_atoms[block_type_index])
delta = mobile.coords[0, start : start + n_atoms] - reference.coords[0, start : start + n_atoms]
return float(torch.linalg.vector_norm(delta, dim=-1).mean().detach().cpu())
displacement_frame = pd.DataFrame(
[
{
"block": block,
"chain": "A" if block < chain_b_start else "B",
"mean_displacement_A": mean_block_displacement(two_chain_pose, jump_moved_pose, block),
}
for block in range(n_blocks)
]
)
show_table(displacement_frame)

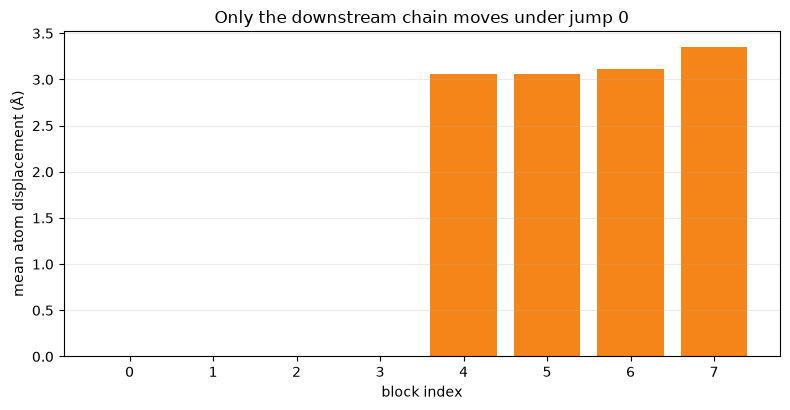

fig, ax = plt.subplots(figsize=(8, 4.2))
colors = displacement_frame["chain"].map({"A": "#4c78a8", "B": "#f58518"})
ax.bar(displacement_frame["block"], displacement_frame["mean_displacement_A"], color=colors)
ax.set(
xlabel="block index",
ylabel="mean atom displacement (Å)",
title="Only the downstream chain moves under jump 0",
)
ax.set_xticks(range(n_blocks))
ax.grid(axis="y", alpha=0.25)
plt.tight_layout()
plt.show()
assert displacement_frame.loc[displacement_frame.chain == "A", "mean_displacement_A"].max() < 1e-3
assert displacement_frame.loc[displacement_frame.chain == "B", "mean_displacement_A"].min() > 1.0
[6]:
try:
display(
tmol.switchable_view(
{
"input two-chain pose": two_chain_pose,
"jump-translated and tilted chain B": jump_moved_pose,
},
notes={
"input two-chain pose": "Chains A and B in their sequence-built placements",
"jump-translated and tilted chain B": "Chain A is fixed; chain B follows ordinary jump 0",
},
width=720,
height=400,
)
)
except ImportError as exc:
print("Interactive jump comparison unavailable:", exc)
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Blocks 0–3 remain numerically fixed, while blocks 4–7 move together. In the switcher, the internal geometry of chain B is unchanged because the operation modifies one rigid-body jump. This is coordinate manipulation, not docking: no search or score chose the new placement.
Assign named torsions in one kinematic pass#
set_named_torsions() accepts parallel pose, block, name, and value lists. The example sends the five internal alanines of an extended peptide toward an α-helical region (φ=-60°, ψ=-45°) in one forward-fold. Terminal torsions are deliberately excluded because a named torsion reaching a missing neighboring residue is undefined.
The before/after Ramachandran plot checks the requested internal coordinates directly. Arrows show assignments, not an optimization trajectory.
[7]:
torsion_pose = tmol.extended_pose_stack_from_sequences(
"AAAAAAA", device=device
)
internal_blocks = list(range(1, 6))
before_torsions = pd.DataFrame(
[
{
"block": block,
"phi": tmol.get_named_torsions(torsion_pose, 0, block, "phi"),
"psi": tmol.get_named_torsions(torsion_pose, 0, block, "psi"),
}
for block in internal_blocks
]
)
request_blocks = [block for block in internal_blocks for _ in ("phi", "psi")]
request_names = [name for _ in internal_blocks for name in ("phi", "psi")]
request_values = [value for _ in internal_blocks for value in (-60.0, -45.0)]
helical_pose = tmol.set_named_torsions(
torsion_pose,
poses=[0] * len(request_blocks),
blocks=request_blocks,
names=request_names,
values=request_values,
)
after_torsions = pd.DataFrame(
[
{
"block": block,
"phi": tmol.get_named_torsions(helical_pose, 0, block, "phi"),
"psi": tmol.get_named_torsions(helical_pose, 0, block, "psi"),
}
for block in internal_blocks
]
)
torsion_frame = before_torsions.merge(
after_torsions, on="block", suffixes=("_before", "_after")
)
show_table(torsion_frame)

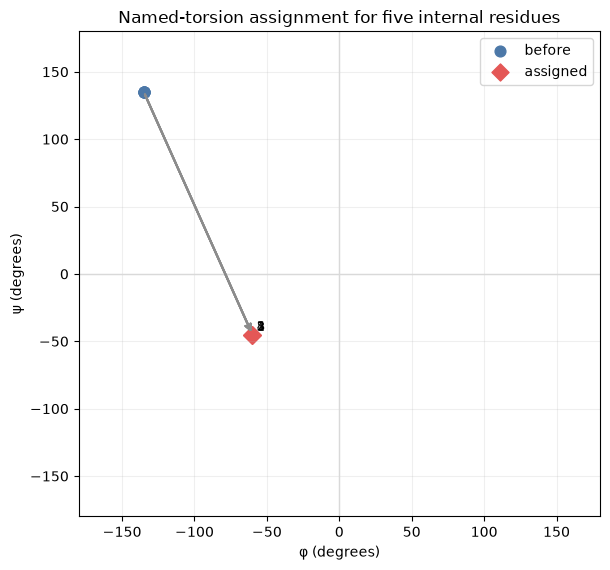

fig, ax = plt.subplots(figsize=(6.2, 5.8))
for row in torsion_frame.itertuples():
ax.annotate(
"",
xy=(row.phi_after, row.psi_after),
xytext=(row.phi_before, row.psi_before),
arrowprops={"arrowstyle": "->", "color": "0.55", "lw": 1.5},
)
ax.scatter(torsion_frame.phi_before, torsion_frame.psi_before, label="before", s=60, color="#4c78a8")
ax.scatter(torsion_frame.phi_after, torsion_frame.psi_after, label="assigned", s=75, color="#e45756", marker="D")
for row in torsion_frame.itertuples():
ax.text(row.phi_after + 3, row.psi_after + 3, str(row.block), fontsize=9)
ax.set(
xlim=(-180, 180),
ylim=(-180, 180),
xlabel="φ (degrees)",
ylabel="ψ (degrees)",
title="Named-torsion assignment for five internal residues",
)
ax.axhline(0, color="0.85", lw=1)
ax.axvline(0, color="0.85", lw=1)
ax.grid(alpha=0.2)
ax.legend()
plt.tight_layout()
plt.show()
np.testing.assert_allclose(torsion_frame.phi_after, -60.0, atol=1e-3)
np.testing.assert_allclose(torsion_frame.psi_after, -45.0, atol=1e-3)
| Loading ITables v2.9.1 from the internet... (need help?) |
| ⓘblock | phi_before | psi_before | phi_after | psi_after |
|---|---|---|---|---|
| 1 | -135.000014 | 134.999987 | -60.000002 | -45.000001 |
| 2 | -134.999987 | 135.000014 | -60.000008 | -44.999991 |
| 3 | -135.000000 | 134.999987 | -60.000008 | -44.999977 |
| 4 | -135.000000 | 135.000000 | -60.000015 | -45.000008 |
| 5 | -135.000000 | 135.000000 | -60.000002 | -44.999994 |
[8]:
try:
display(
tmol.switchable_view(
{
"extended backbone": torsion_pose,
"assigned helical φ/ψ": helical_pose,
},
notes={
"extended backbone": "Sequence-built extended torsions",
"assigned helical φ/ψ": "Internal blocks 1–5 set to φ=-60°, ψ=-45°",
},
width=720,
height=400,
)
)
except ImportError as exc:
print("Interactive torsion comparison unavailable:", exc)
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
All measured internal torsions reach the requested values within numerical tolerance, and the peptide becomes compact and helical-looking. No score was minimized, so clashes or unfavorable side-chain interactions may remain. set_named_torsions() preserves the internal lengths and angles carried by the input kinematics; it is not an idealization protocol.
Choosing a topology#
Use
reasonable_fold_forest()for ordinary connected chains and gap-aware defaults.Use an ordinary jump when one component’s placement must be controlled relative to another.
Use a dandelion forest when a method operates on independent residue frames.
Validate edge coverage and jump numbering before minimization or differentiation.
Treat a FoldForest as a coordinate dependency graph, never as a replacement for chemical connectivity.
Exercises#
Reverse the polymer edge for chain A and observe which end remains stationary when changing an internal torsion.
Add a second ordinary jump and verify that jump indices are contiguous.
Differentiate a coordinate-based objective through the inter-chain jump and inspect the six rigid-body gradients.
